K2MS Portal (P3- 2016 onward)

K2MS Portal (P3- 2016 onward)

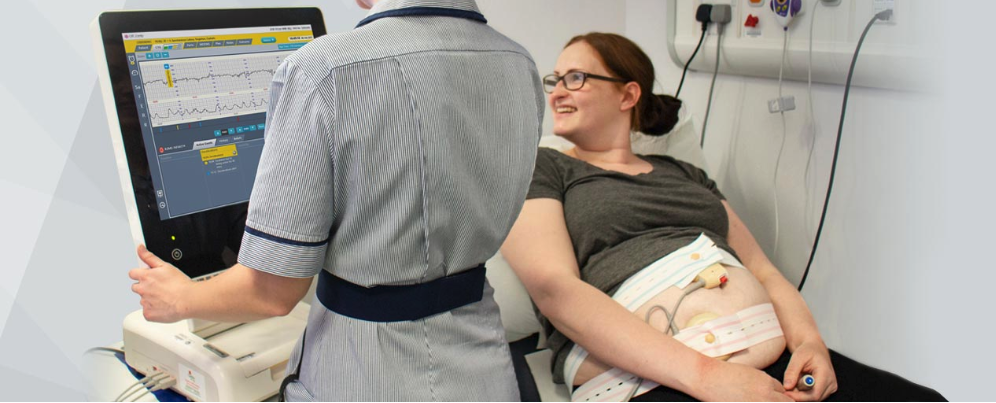

A medical panel PC designed and manufactured by K2MS. The K2MS Portal is a certified medical device that uses a Microsoft Windows® embedded operating system for reliable and stable hosting of the K2MS Guardian, K2MS INFANT, and K2MS Athena software products. http://www.k2ms.com/products/portal.aspx


Highlights include:
- A rugged, fan-less, fully sealed and waterproof design.
- Peerless wipe-clean design for infection control.
- Internal electrical isolation for easy, safe connections to medical devices and hospital IT infrastructure.
- Internal power supply with energy store to power device during short-term outages.
- Internal storage cache for back-up of patient data during network outages or database maintenance. Storage capacity exceeds 4 days of continuous fetal monitoring and associated patient data.

Screen

19" standard aspect ratio (1280x1024) with integrated capacitive touch-screen.

PC Chipset

3rd generation Intel® Atom E3845 quad core 1.91 GHz 4 GB DDR3 SRAM

Audio

Internal HDA CODEC with integrated sound transducer/loudspeaker for high quality audio within a sealed enclosure.

Isolated Interfaces

For connection to hospital IT networks and fetal monitors without the need for secondary isolation or separation safety measures. Basic Insulation for 240 V is implemented:

Serial (RS232) Port

Ethernet Port, 100/1000BaseT

Accessory Interface

For robust connection to an optional K2MS keyboard/touchpad accessory.

Disk Drive

Internal mSATA SSD (Solid State Drive), accessible under rear access cover.

Fingerprint Reader

Optical fingerprint scanner (Secugen® technology).

Environmental

IP65 sealed*1 with fully waterproof data and mains power connectors.

Suitable for use by birthing pools.

A true ‘wipe-clean’ design with solid toughened glass front.

+10C to +40C operational temperature range.

Mechanical

9 kg approximate weight

100 mm VESA Mount centrally positioned at device rear

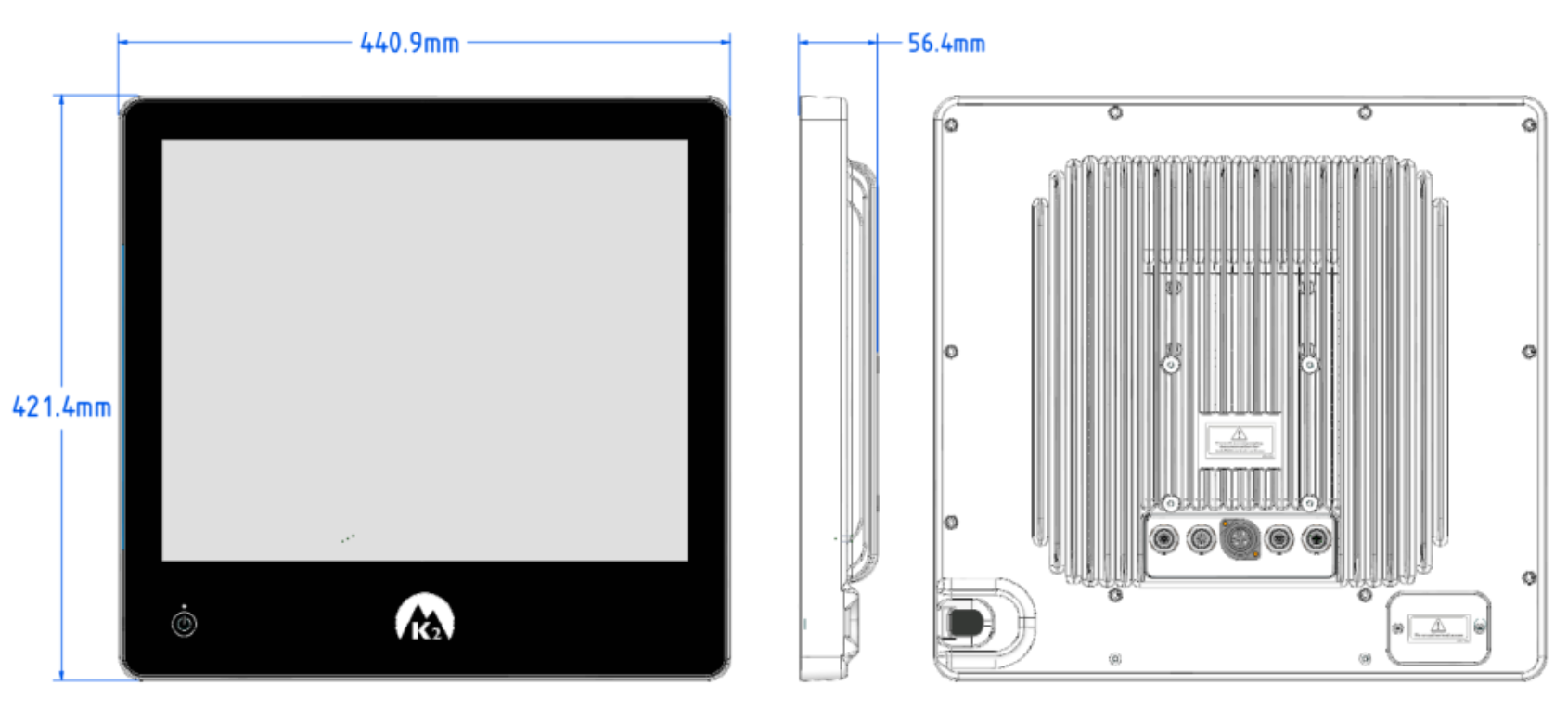

440.9 mm wide, 421.4 mm high, 56.4 mm deep

Operating System

Embedded OS developed by K2MS based on Microsoft® technology. Data security and virus protection ensured*2.

Wireless

Wireless 802.11 b/g/n and Bluetooth*3 4.0 HS Internally fitted antenna

Electrical

110 – 240 Vac

50/60 Hz (110VA)

Class I device for electrical safety (Protective Earth).

Internal PSU

Features internal super-capacitors energy store to keep device powered and operational during short-term power outages of 20-30 seconds.

Cables

Rugged Ethernet/network cables.

Serial data cables for connection between the K2MS Portal and 3rd party fetal monitors or CTG machines.

Approvals

CE Marked

BS EN 60601-1:2006 +A12:2014

BS EN 60601-1-2:2007

BS EN 62366-1:2015

Medical Device Directive 93/42/EEC EMC Directive 2004/108/EC

RoHS Directive 2002/95/EC

WEEE Directive 2002/66/EC

Medical electrical equipment. Part 1. General requirements for safety.

Medical electrical equipment. Part 1-2.

Electromagnetic compatibility - Requirements and tests.

Medical Devices Part 1: Application of Usability Engineering to Medical Devices.




Specification subject to change without notice
*1 Designed for IP65 compliance
*2 The embedded operating system ensures data security and protection from virus and malware threats by strict control of data access and write privileges. *3 Bluetooth operation subject to operating system restrictions

Further information can be found in the K2MS P3 Portal Technical Manual here.
