K2 Medical Systems Keyboard Accessory Kit
K2 Medical Systems Keyboard Accessory Kit

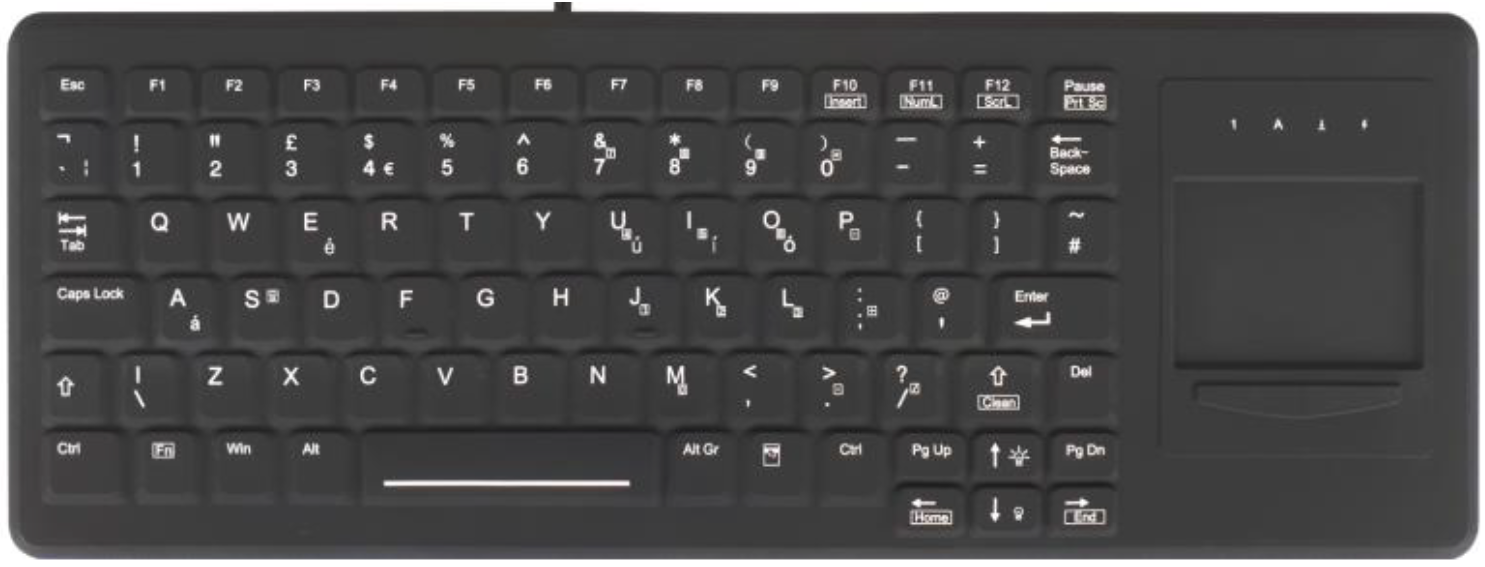

The K2 Medical Systems’ Keyboard Accessory Kit comprises a medical grade keyboard/trackpad device and mounting kit.
The mounting kit allows the keyboard to attach directly to the K2MS Portal® device for superior ergonomics.
Keyboard Specification:
- Combined keyboard and trackpad/mouse functionality, designed for medical applications.
- Sealed, IP68 waterproof wipe clean design compatible with common disinfectant methods.
- A light keyboard action, suitable to touch-typists, with 2.5mm ±0.5mm key travel and 10 million rated stroke life.
- Backlit with user control of illumination intensity, UK, QWERTY layout.
Mounting Kit:
The mounting kit contains everything needed to mount the keyboard directly onto the K2MS Portal® device. Mounting kits are
available in P2 and P3 options. The solution includes provision for cable routing ensuring reliable service life
Ordering Information
Part Number | Description | Use notes or restrictions |
050-711 | P3 Keyboard Accessory Kit (Generation 2) | Standard P3 use, P3 serial numbers Cxxx0191 and higher |
050-712 | P3 Keyboard Accessory Kit (Generation 1) | Early P3's, 2 part camp solution, serial numbers Cxxx006 to Cxxx0190 |
040-700 | P2 Keyboard Accessory Kit | Cannot be used with K2MS Portal devices mounted on RAFI/R'Care Carts |
050-057 | Keyboard only (long cable), for P3 | Keyboards must be securely mounted to a suitable surface |
040-701 | Keyboard only (long cable), for P2 | Keyboards must be securely mounted to a suitable surface |
Keyboard Accessory Kits are suitable for use with wall and cart mounting supplied by K2MS in partnership with CIM med GmbH.
