CTG Recorder Compatibility

CTG Recorder Compatibility

A wide range of CTG machines (or fetal monitors) are in common use, with each model having differing serial interface connection requirements. Each K2MS Portal is supplied with a CTG Serial Interface Adaptor Accessory Kit to enable the K2MS Portal to be connected to a wide range of commonly used CTG recorders.

The supplied K2MS CTG Serial Adaptor Box is installed with each CTG machine. It includes an easy to fit, push-pull style connector so that the CTG machine can be disconnected from the portal and relocated to another room if required.

Supported CTG Machines

Supported CTG machines together with the appropriate adaptor cable assembly are listed in the Settings Table below. Please contact K2 Medical Systems if your CTG machine or fetal monitor is not listed; it is most likely there will be a suitable combination.

Settings Table

CTG Machine Type

Accessory Cable (colour code, type & part number)

CTG Machine Connector

Adaptor Box Connector

Switch Position

GE/Corometrics 118

Philips Avalon

FM20, FM30, FM40 & FM50

HP/Agilent/Philips

Series 50 XM (M1350B)

Series 50 XMO (M1350C)

Huntleigh Sonicaid (Oxford Instruments)

Encore FM800, FM830

Team

EDAN Instruments F9

Blue

050-838

D-Type 9 Male

1

Left

Huntleigh BD4000

Blue

050-838

D-Type 9 Male

1

Right

GE/Corometrics

120, 250, 250CX, 259CX

Red

050-839

RJ11 (6P6C)

1

Left

Neoventa STAN S31

White

050-841

(Not included as standard)

D-Type 9 Female

2

n/a

HP/Agilent/Philips

Series 50 A (M1351A)

Series 50 IP-2 (M1353A)

Yellow

050-840

(Not included as standard)

IEEE488 Centronics 24

2

n/a

GE/Corometrics 170, 174

Green

050-842

RJ45 (8P8C)

2

n/a

Note: The Yellow and White cable assemblies, part numbers 050-840 and 050-841 respectively are not supplied as standard. These will be supplied free of charge if required for an installation.

Installation Instructions

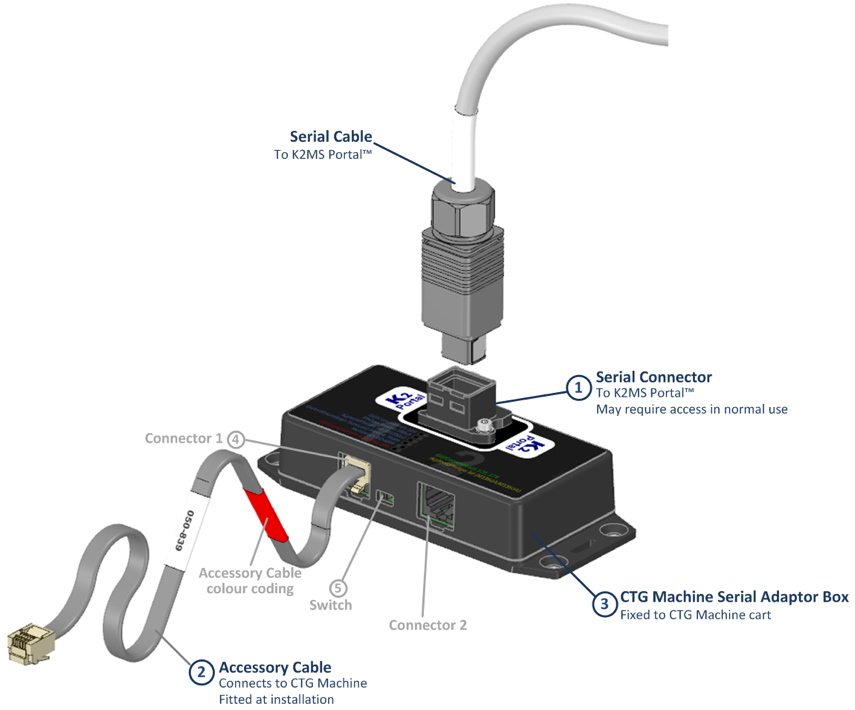

(Refer to illustration below for legend descriptions)
  1. Firmly mount the CTG Adaptor Box ( 3 ) at the rear of the CTG Machine cart and within 15cm of the CTG machine's serial port. Also ensure the main Serial Connector ( 1 ) (labelled K2 Portal) is accessible to users. A secure, fixed mounting is essential for long term reliability. (Sets of M4 screws, nuts and washers together with self-adhesive disks are included in the kit for this purpose; the most suitable method is at the installer’s discretion).
  2. Fit the appropriate Accessory Cable ( 2 ) between the CTG Adaptor Box and the CTG Machine. (If your CTG machine is not listed, please contact K2 Medical Systems for further support).
  3. Accessory Cables using CTG Adaptor Box Connector 1 ( 4 ) must have the Adaptor Box Switch ( 5 ) set as shown in the Settings Table above.
  4. Route and tidy the Accessory Cable to remove risks of accidental damage, catching, strain or wear.

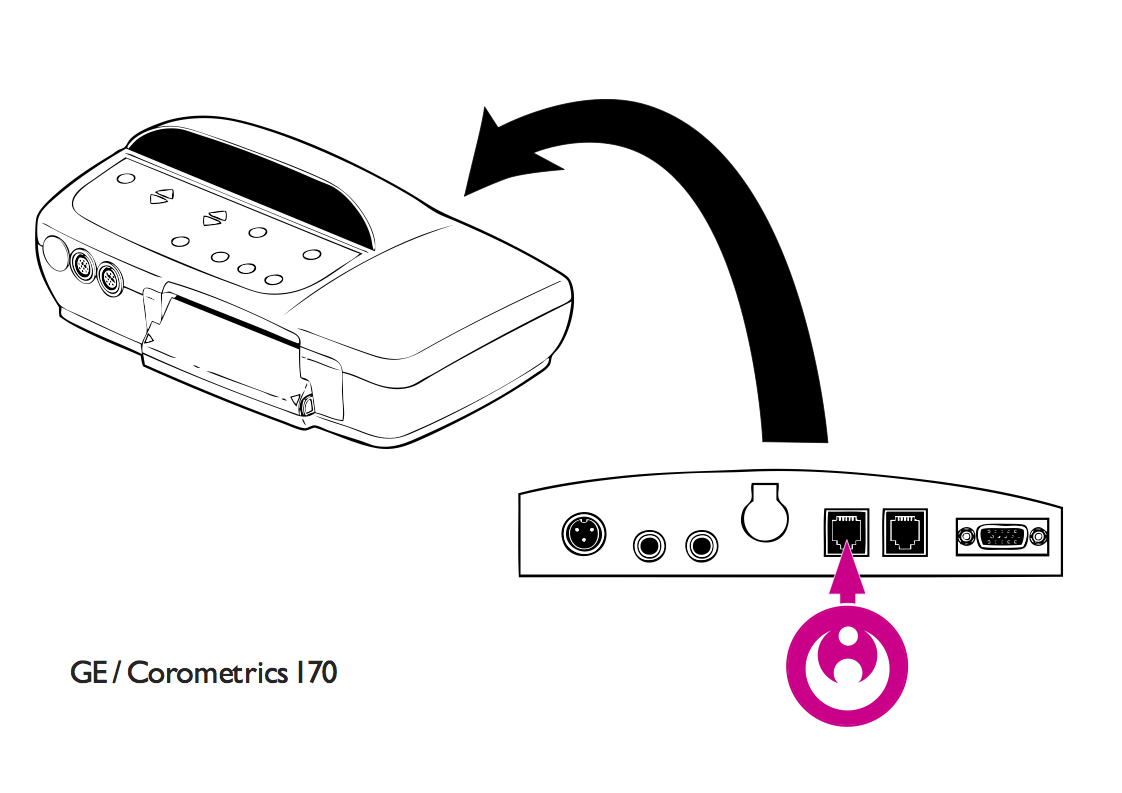

GE/ Corometrics 170

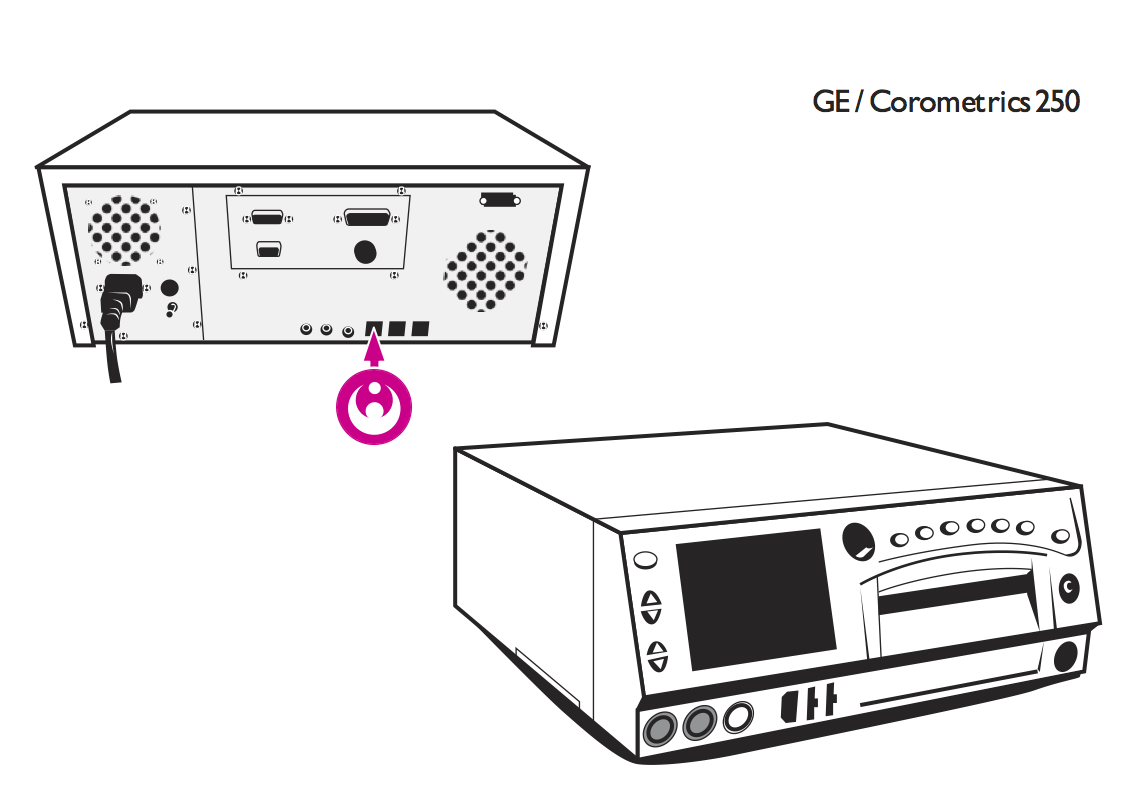

GE/ Corometrics 250


Philips Avalon FM30
